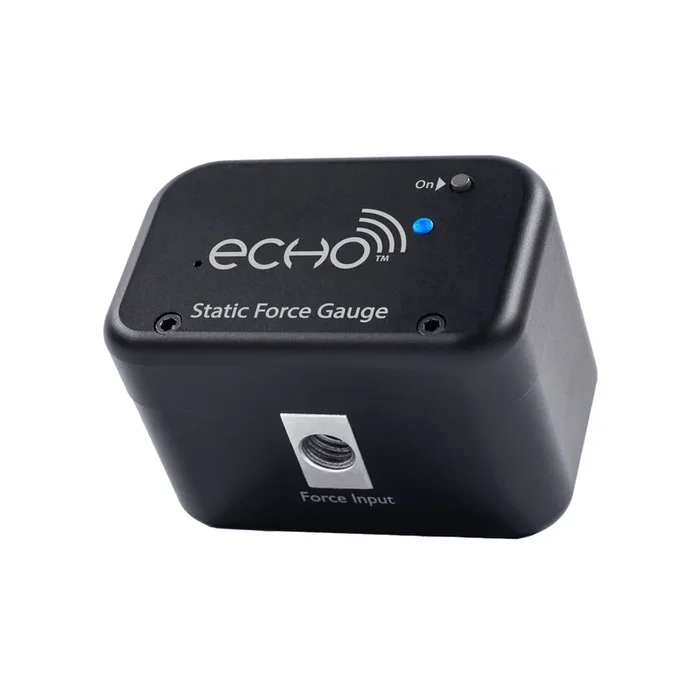

JTech Commander Echo Static Force Gauge CM310

Description

Static strength testing can provide crucial insight into a person’s functional abilities in rehab, sports medicine, employer services and many other markets. JTECH’s portable tools provide the ability to quickly perform a vast array of push, pull and lift tests to determine physical capacities for a variety of applications. Commander Echo offers a portable, highly accurate digital testing solution that doesn’t require a computer for data collection.

Designed for versatility, the wireless Static Force Gauge is perfect for conducting: Analyses, Functional Capacity Evaluations (FCEs), Ergonomic Studies, National Institute for Occupational Safety and Health (NIOSH) Lift Tests and much more. The Static Force Gauge also helps determine consistency of effort in Workers’ Compensation and FCE exams.

Note: This item requires a Commander Echo Console to function. Multiple devices can be paired with one Console.

• Precision technology achieves greater than 99% force accuracy.
• Maximum force rated to 500 lbs for strong performers
• Compatible with NIOSH lifting standards, normative data published in the AMA Guides and customized tests

Features

• Displays maximum force, Coefficient of Variation (CV), and test averages
• Console stores 20 tests with up to 8 repetitions per test
• Wireless console allows the tester to review data during active testing without influencing the patient’s level of effort
• Six (6) different accessories for unlimited testing possibilities
• Maximum force rated to 500 pounds for strong performers
• Precision technology achieves greater than 99% force accuracy
• Measures push force, pull force and weight
• Calculates CV for multiple repetitions (NIOSH lifts)
• Displays maximum force and average force for each repetition
• Adjustable test time and ready time
• Timed tests from 1-5 seconds or untimed tests for longer durations
• Can be used to weigh workplace objects

Specifications

Repetitions per Test:1-8
Maximum Force Input:500 lbf (226 kg , 2224 N)
Units of Measure:lb, kg, N
Weight:0.39 lb (0.18 kg)
Length:2.79 in (7.1 cm)
Width:1.81 in (4.6 cm)
Height:1.96 in (5 cm)
Battery Type:Rechargeable Lithium Polymer
Battery Life:Approx. 10-14 hours of continual use

Included Accessories

T-Bar– Used for 2-handed pushing and pulling.
D-Handle– For custom lifting and in-line testing.
Hook with Stud– For attaching cables, hooks, ropes, etc.
4″ Push Disk– For exerting force against flat surfaces.
Curved Pad– For push force measurements against objects and extremities.
Flat Pad– For push force measurements against objects and extremities.
Threaded Pad Adapter– For attaching pads to the gauge.
12″ Cable– For various lifting, pushing, pulling, or static strength tests.
