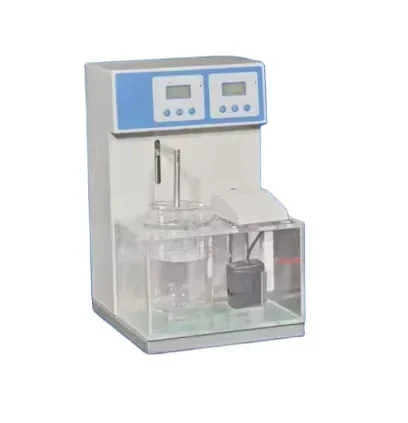

Tablet Disintegration Tester – High-Precision Testing of Solid Dosage Forms
The Disintegration Tester is a professional laboratory instrument designed to evaluate the disintegration performance of solid dosage forms such as tablets and capsules under specified conditions. This reliable, user-friendly device ensures compliance with pharmaceutical standards for product quality and consistency.
Key Features:
-
Triple Testing System: Equipped with three vessels and three testing rods, aligned in a single row for simultaneous testing.
-
Adjustable Head Assembly: The top section can be smoothly and manually flipped for easy basket access and maintenance.
-
Premium Materials: Basket and paddle units are constructed from high-grade SUS316L stainless steel for superior corrosion resistance and durability.
-
Efficient Water Circulation: Magnetically driven circular water flow ensures uniform temperature distribution throughout the bath.
-
Digital MPU Control System: Automatically manages temperature, rotation speed, and timing, with real-time LED display for both preset and actual values.
-
User-Friendly Interface: Simple keystroke operation with automated functions including auto-test, self-diagnosis, and system alerts for optimal lab performance.
Technical Specifications:
| Parameter | Value |
|---|---|
| Speed Range | 20 – 200 rpm |
| Speed Accuracy | ±2 rpm |
| Temperature Range | Ambient to +45.0°C |
| Temperature Stability | ±0.3°C |
| Timing Points | 9 presets (5–900 minutes) |
| Time Accuracy | ±0.5 min |
| Paddle Radial Run-Out | ≤ ±0.5 mm |
| Basket Radial Run-Out | ≤ ±1.0 mm |
| Power Supply | 220V/50Hz/600W or 110V/60Hz/600W |
| Dimensions | 510 × 300 × 480 mm³ |
Applications:
Ideal for pharmaceutical laboratories, research institutions, and quality control departments for routine disintegration testing of tablets and capsules in accordance with USP and other pharmacopoeia standards.
